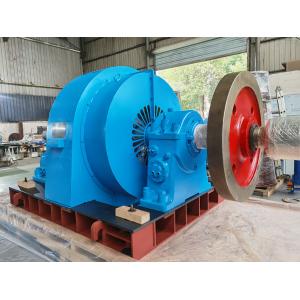

Francis Water Turbine Generator
The Francis Turbine Generator is a highly efficient and reliable
hydroelectric power generation solution designed for industrial
applications. Featuring a stainless steel runner construction, this
generator delivers exceptional durability and corrosion resistance
in demanding water environments.
Key Features
- Stainless steel runner material for enhanced durability
- Power range: 300 kW to 20 MW
- Multiple voltage options: 6.3kV, 10kV, 20kV, 35kV
- Soft start mechanism for reduced mechanical stress
- Efficiency up to 95%
- 5-in-1 integrated control panel excitation device
- Rated frequency: 50Hz/60Hz
- OEM customization available
Technical Specifications
| Parameter | Specification |
|---|
| Grid System | On Grid/Off Grid |
| Layout Pattern | Horizontal or Vertical |
| Startup Mode | Soft Start |
| Voltage | 6.3kV/10kV/20kV/35kV |
| Rated Discharge | 12.2-30.4 m³/s |
| Design Speed | 1000 r/min |
| Number of Blades | 12 to 24 |
| Runner Material | Stainless Steel |
| OEM Services | Available |
| Origin | Sichuan, China |
Applications
The Francis Turbine Generator is ideal for medium to large-scale
hydroelectric power plants, including river dams, reservoir power
stations, and pumped storage facilities. With discharge rates from
12.2 to 30.4 cubic meters per second, it efficiently converts
hydraulic energy into electrical power for various industrial
applications.
Customization Options
Dongsen-DSSD HYDROPOWER offers comprehensive OEM services for the
Francis Turbine Generator. Customization includes model selection
(HL-WJ or LJ), layout configuration (horizontal or vertical), blade
count (12-24), and voltage specifications to meet specific project
requirements.
Support & Services
Our technical support includes installation guidance, maintenance
services, troubleshooting, and comprehensive training programs.
Detailed documentation ensures optimal performance and minimal
downtime throughout the generator's operational life.
Packaging & Shipping
Each Francis Turbine Generator is securely packaged in robust
wooden crates with protective padding. Shipping options include sea
freight, air cargo, or land transport with complete documentation
and real-time tracking.
Frequently Asked Questions
What is the brand name and model number?
Dongsen-DSSD HYDROPOWER, models Francis HL-WJ and Francis HL-LJ
Where is it manufactured?
Deyang, China
What certifications does it have?
ISO, CE, and TUV certified
What is the minimum order quantity and price?
1 set at approximately $220,000
What is the delivery time?
Approximately 120 days
